T-Piece Silicone Hose – Enhancing Pipeline Efficiency

Compared with common rubber hose,polyester reinforced T-piece silicone hose can withstand extreme temperatures and high pressure. It still maintains its good properties within -50 °C to +170 °C.

T connector features two different inner diameters – the main body and the take-off. This structure makes it an effective transition of different sizes of pipes. It is widely used in pump valve fitments and breather hose connectors.

Remarks: T-piece silicone connector is not suitable for contacting oils & fuel. Nomex reinforced or Fluoro lined just for special order. Any bespoke size can be made.

Features

Table 1: Specifications of Polyester Reinforced T-Piece Silicone Hose
Part No. Length Plies Wall Main Body ID Take-Off ID
mm inch mm mm
T32-12 150 6" 3 4 32 12
T38-16 150 6" 3 4 38 16
T38-25 150 6" 3 4 38 25
T51-25 150 6" 4 5 51 25
T60-25 150 6" 4 5 60 25
T63-25 150 6" 4 5 63 25
T70-25 150 6" 4 5 70 25
T76-25 150 6" 4 5 76 25

Application

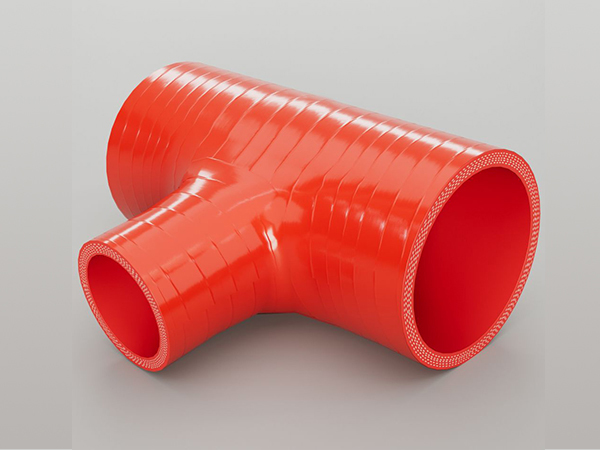

A polyester reinforced T-piece silicone hose

Polyester reinforced T-piece silicone hose
