SAE 100R14 PTFE Lined Hydraulic Hose – Suitable for High Temperature and Harsh Conditions

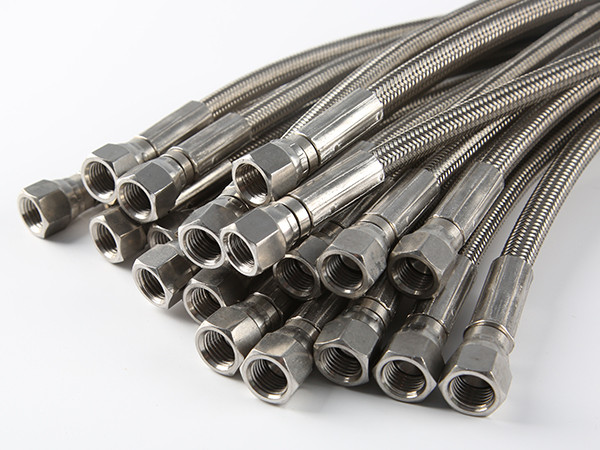

Multiple SAE 100r14 PTFE lined hydraulic hoses with internal threaded fittings

SAE 100R14 PTFE lined hydraulic hose is widely used for petroleum base and synthetic base hydraulic fluids with temperature ranging from -54 °C to +204 °C. What's more, temperature ranging of water base hydraulic fluids should be agreed upon by the manufactures of both the hose and the fluid. Type A is consist of an inner tube of polytetrafluoroethylene (PTFE), reinforced with a single braid of 303XX series stainless steel wire. Stainless steel wire braid will not be affected in harsh environments including damp environment, oils, chemicals, abrasions and all weather conditions.

SAE 100R14 PTFE medium pressure hydraulic hose is widely used in air compressor discharge, hot oil and fluids, hot and greasy environments and chlorine application.

Construction

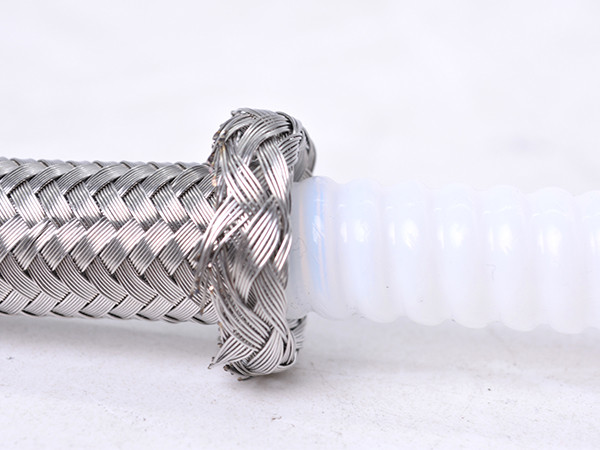

A SAE 100R14 PTFE lined hydraulic hose showing internal and external details
  • Tube: An Inner tube of polytetrafluoroethylene (PTFE).
  • Reinforcement: Reinforced with a single braid of 303XX series stainless steel wire.
  • Temperature: -54 °C to +204 °C (-65 °F to +400 °F).
Table 1: SAE 100R14 PTFE Lined Hydraulic Hose Specification
PART NO. Size SAE Size I.D. O.D. Max W.P Proof Pressure Min B.P Min B.R
mm dash min max min max MPa Psi MPa Psi MPa Psi mm
SAE100R14-0003 3.2 -3 2.8 3.8 5.3 6.8 10.5 1522 41.4 6003 82.7 11991 40
SAE100R14-0005 5.0 -4 4.4 5.2 7.1 8.2 10.5 1522 34.5 5002 68.9 9990 50
SAE100R14-0006 6.3 -5 6.0 6.9 8.9 10.1 10.5 1522 31.0 4495 62.0 8990 75
SAE100R14-0008 8.0 -6 7.5 8.4 10.4 11.6 10.5 1522 27.6 4002 55.2 8004 100
SAE100R14-0010 10.0 -7 9.1 10.0 12.2 13.4 10.5 1522 24.1 3494 48.3 7003 125
SAE100R14-0011 11.0 -8 9.9 10.9 12.9 14.3 7.0 1015 20.7 3001 41.4 6003 135
SAE100R14-0013 12.5 -10 12.3 13.3 15.3 16.8 5.6 812 20.7 3001 41.4 6003 165
SAE100R14-0016 16.0 -12 15.3 16.5 18.6 20.1 5.6 812 17.2 2494 34.5 5002 200
SAE100R14-0019 19.0 -14 18.4 19.6 21.3 23.3 5.6 812 16.8 2436 27.6 4002 230
SAE100R14-0022 22.0 -16 21.4 23.0 24.6 26.9 5.6 812 12.1 1754 24.1 3494 230
SAE100R14-0025 25.0 -18 24.6 26.2 27.8 29.8 5.6 812 12.1 1754 24.1 3494 300
SAE100R14-0029 29.0 -20 27.8 29.4 31.9 33.5 4.2 609 8.6 1247 17.2 2494 410

Fittings

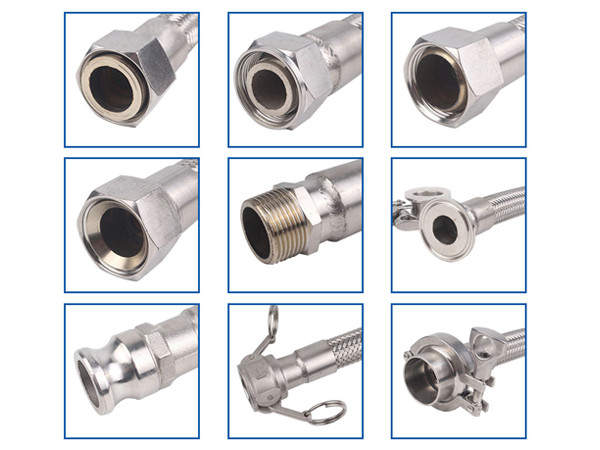

Nine types of fittings suitable for SAE 100R14 PTFE lined hydraulic hose products

Applications

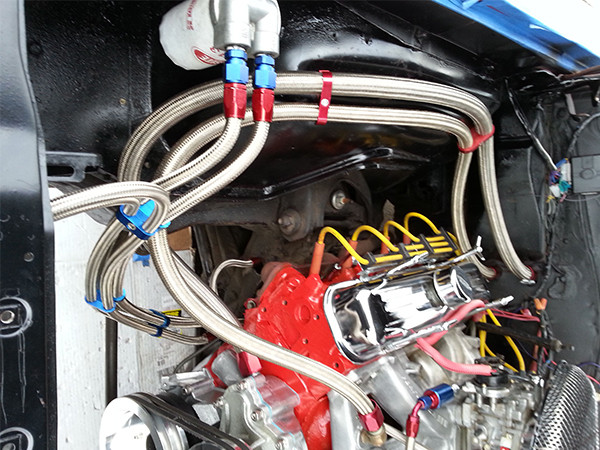

SAE 100R14 PTFE lined hydraulic hose installed in the air compressor exhaust system of a delivery truck

Air compressor exhaust system


Hot oil pipeline
