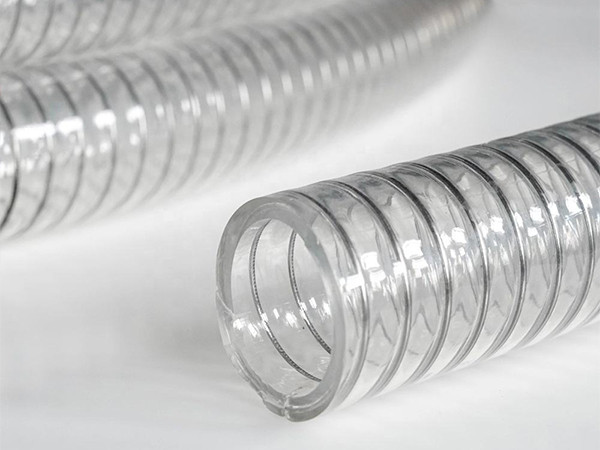

Silicone Spiral Steel Wire Hose Allows Observation Of The Flow Of Fluid Inside The Hose

Details of a silicone spiral steel wire hose

Silicone spiral steel wire hose is a high-performance industrial hose with characteristics of low temperature resistance, high temperature resistance, high pressure resistance, and good transparency. It is widely used for conveying various liquid mediums, such as hydraulic oil, lubricants, and highly corrosive special liquids. This hose can withstand high temperatures and pressures, and also allows for clear observation of the flow of liquid inside the hose, which helps in accurately controlling the flow rate, making it play an important role in many industrial applications.

Specifications

  • Material: 100% silicone
  • Temperature: -40 °C to +220 °C
  • Color: Transparent
  • Features: Odorless, non-toxic, environmentally friendly
  • Applications: Food, medicine, electronics, industry, etc.
Table 1: Silicone Spiral Steel Wire Hose Specifications
Item Code I.D. Thickness R W.P. B.P.
mm inch mm mm bar psi bar
siliconwire010 10 3/8" 5.5 34 11 159 33
siliconwire013 13 1/2" 5.5 39 9.9 144 30
siliconwire016 16 5/8" 5.5 45 9.1 132 27
siliconwire019 19 3/4" 5.5 54 8.3 120 25
siliconwire025 25 1" 5.5 68 7.4 107 22
siliconwire032 32 1-1/4" 5.5 94 6.4 93 20
siliconwire038 38 1-1/2" 5.5 112 5.7 83 17
siliconwire051 51 2" 5.5 144 4.6 67 14
siliconwire057 57 2-1/4" 5.5 165 4.3 63 13
siliconwire063 63 1-1/2" 5.5 181 3.8 55 11
siliconwire076 76 3" 5.5 232 3.0 44 9
siliconwire089 89 3-1/4" 5.5 258 2.7 39 8
siliconwire102 102 4" 5.5 367 1.9 27 5
