PVC Spring Hose With Spiral Steel Wire Reinforced

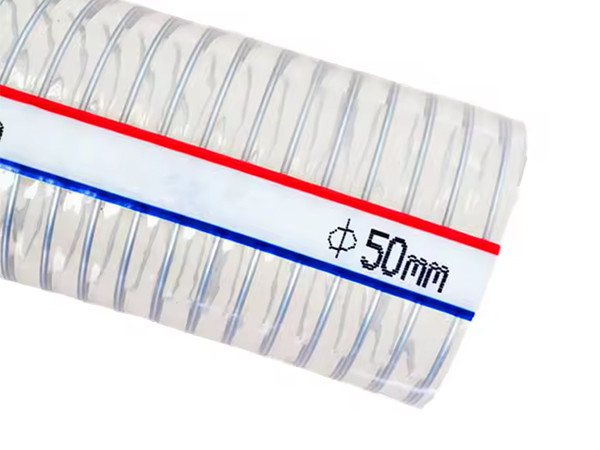

A food-grade PVC steel wire reinforced hose with a diameter of 50 mm

PVC steel wire reinforced hose is also called spring hose, which has steel wire screwy inserted in the PVC body. Spring hose is light and transparent with excellent weather resistance, small bending radius and good resistance to negative pressure. It is widely used in sanitary and foodstuff industry, for drawing and converting water, oil and powder in factories, agriculture and buildings.

Table 1: PVC Steel Wire Reinforced Hose Technical Specification
PART NO. ID OD W.P B.P Length
inch mm mm bar bar m
PVCSRH-0006 1/4" 6 11 8 24 100
PVCSRH-0008 5/16" 8 13.5 8 24 100
PVCSRH-0009 3/8" 9 15 8 24 100
PVCSRH-0012 1/2" 12 18 6 18 100
PVCSRH-0015 5/8" 15 22 6 18 100
PVCSRH-0019 3/4" 19 26 6 18 50
PVCSRH-0025 1" 25 32 6 18 50
PVCSRH-0032 1-1/4" 32 40 5 16 50
PVCSRH-0038 1-1/2" 38 47 5 16 50
PVCSRH-0050 2" 50 61 5 16 50
PVCSRH-0064 2-1/2" 64 78 4 14 40
PVCSRH-0075 3" 75 90 4 14 20
PVCSRH-0090 3-1/2" 90 106 4 14 20
PVCSRH-0100 4" 100 116 4 14 20
PVCSRH-0127 5" 127 141 2 10 20
PVCSRH-0152 6" 152 166 2 10 20
PVCSRH-0200 8" 200 220 2 10 10
Note: Custom design is also acceptable

Gallery

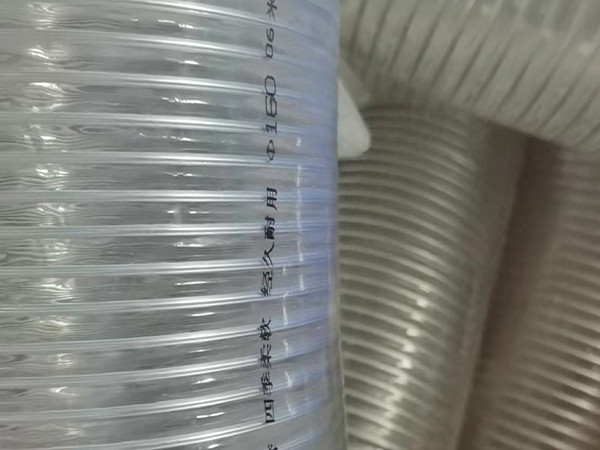

A transparent 8

8" PVC steel wire reinforced hose

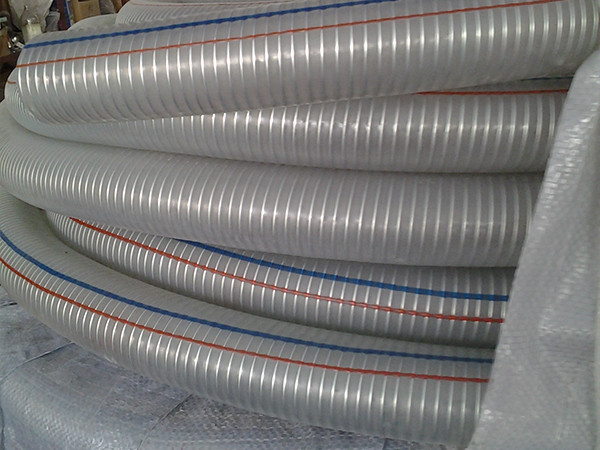

Processed transparent PVC steel wire reinforced hose stored in warehouse

PVC steel wire reinforced hose storage

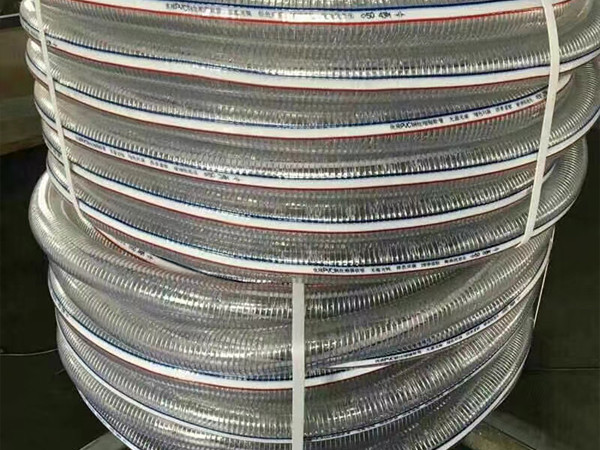

Two PVC steel wire reinforced hoses packaged and stacked together

PVC steel wire reinforced hose packaging

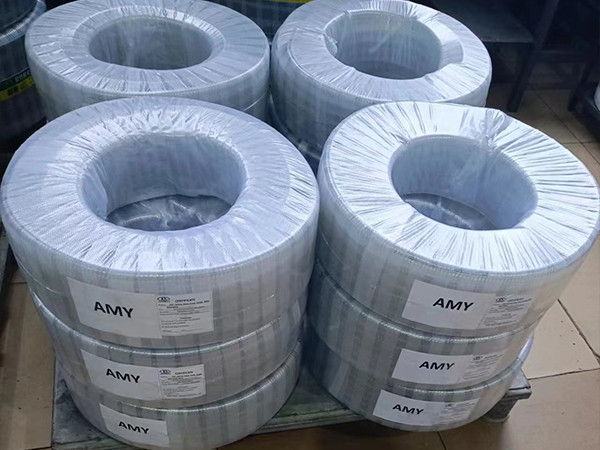

Packed 12 PVC steel wire reinforced hoses are placed in the trolley

PVC steel wire reinforced hose packaging
