Composite Hose – Flexible and Durable

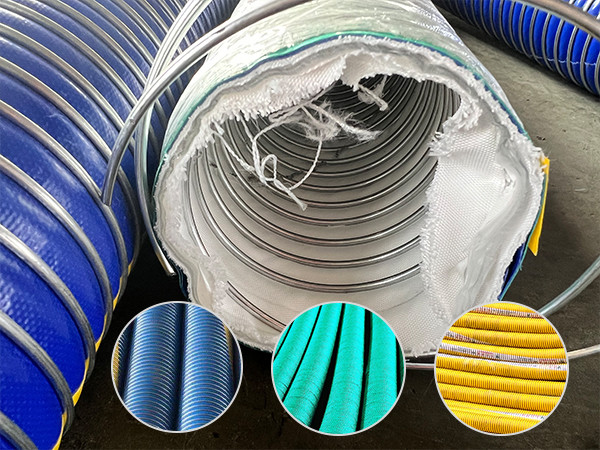

Four styles of composite hoses

Composite hose is soft and lightweight, and it is suitable for frequently bend and move application. It has excellent anti-static performance. The hose is suitable for all fuel oil products, such as gasoline, diesel, crude oil, liquefied petroleum gas (LPG), lubricating oil, ethanol gasoline and bio-diesel. It is also suitable for the delivery of chemical fluids which are corrosive and aggressive.

Construction

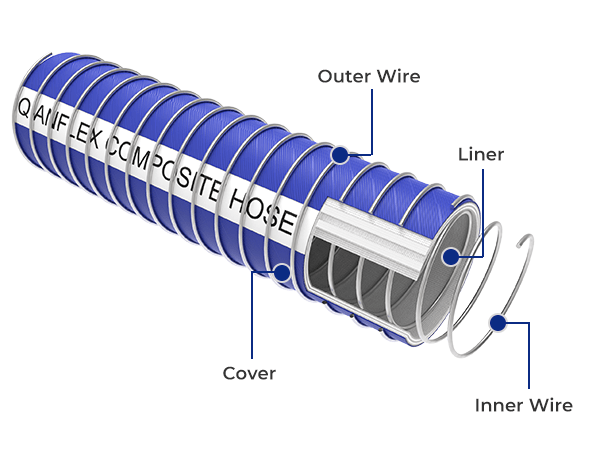

Structure display of composite hose
  • Inner Wire: Galvanized steel or 304 or 316 L stainless steel
  • Outer Wire: High tensile galvanized steel or 304 or 316 L stainless steel
  • Cover: Polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover.
  • Liner: Combination of multiple piles of polypropylene films and polyester vapour barriers.
  • Temperature Range: -40 °C to +110 °C
  • Safety Factor: 4:1
Table 1: Composite Hose Specifications
Item I.D. (inch) B.R. (inch) W.P. (psi) Weight (lb/ft.) Length (m)
1 1" 5-1/2" 370 0.7 30.0
2 1-1/2" 6" 370 1.0 30.0
3 2" 7" 370 1.7 30.0
4 2-1/2" 8" 370 2.2 30.0
5 3" 10" 370 3.0 30.0
6 4" 20" 345 5.0 30.0
7 6" 26" 345 9.3 19.5
8 8" 30" 345 12.5 19.5
9 10" 36" 225 15.1 19.5
10 12" 40" 225 18.7 19.5

Fittings

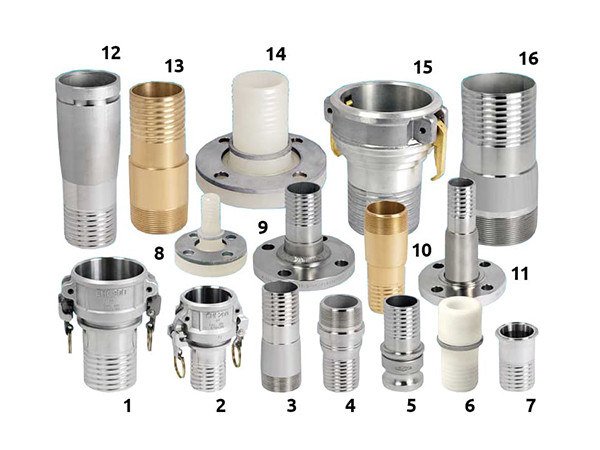

16 types of fittings that can be installed on composite hoses

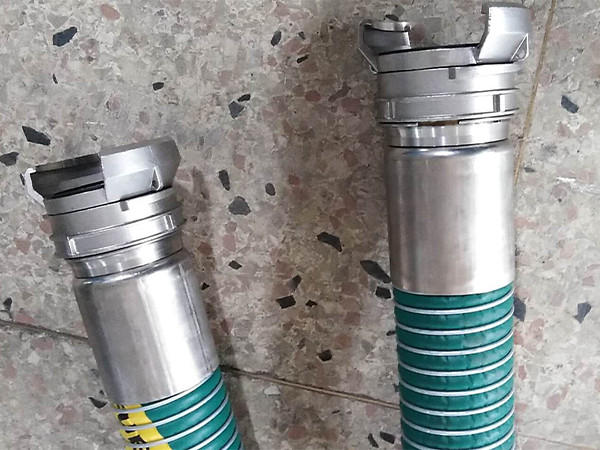

Composite hose with camlock fitting

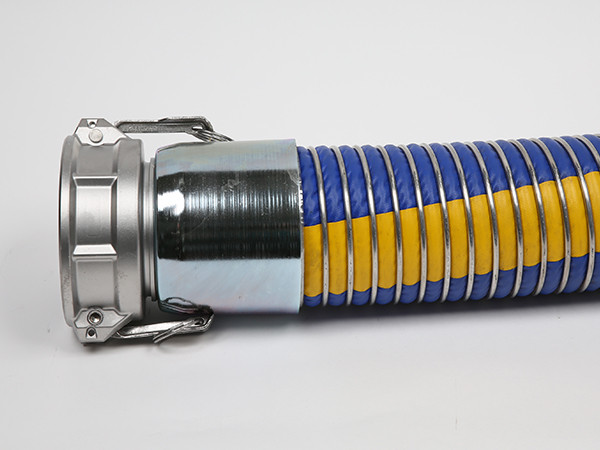

Composite hose with coupler fitting

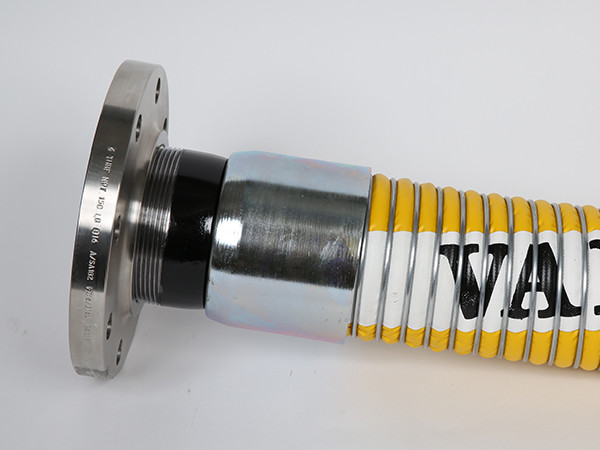

Composite hose with flange fitting

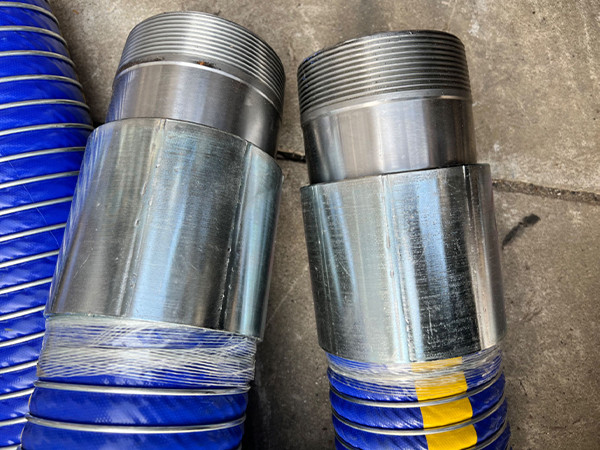

Composite hose with external fitting

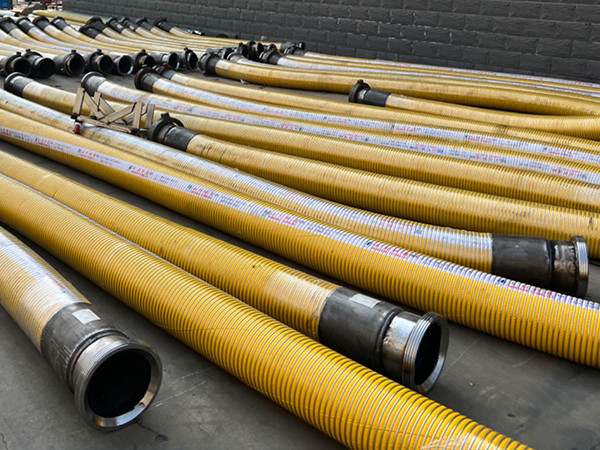

Composite hose with fittings

Packaging & Shipping

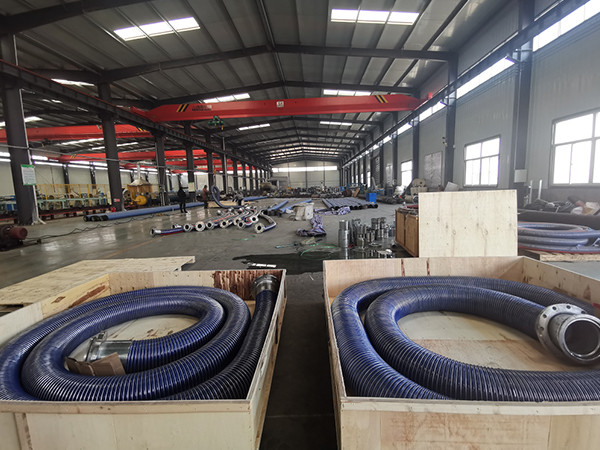

Blue composite hose packed in wooden box

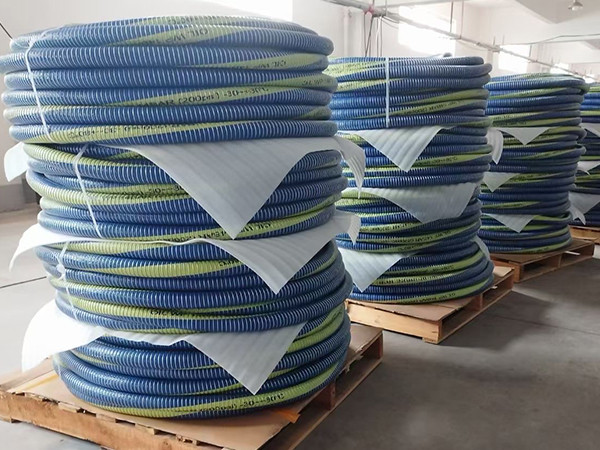

Packaged blue composite hose stacked on wooden pallet

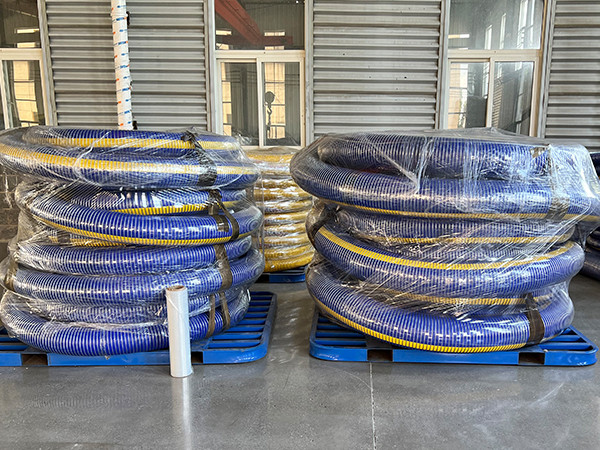

Packaged blue composite hose stacked on blue plastic rack

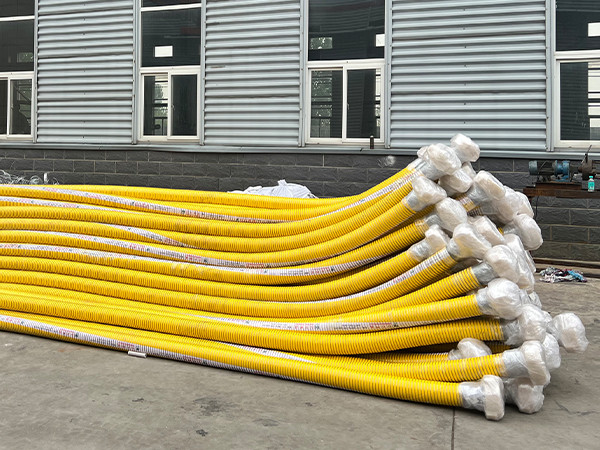

Yellow composite hose packaged in plastic film
Forklift transporting composite hose
