Industrial Grade Steam Rubber Hose

A red steam rubber hose with fittings

Steam rubber hose is a industrial pipeline specially designed for transporting high-temperature steam. It consists of high-temperature resistant rubber inner layer, copper reinforcement wire in the reinforcement layer, and smooth EPDM rubber outer layer. With a three-layer composite structure, it has excellent high-temperature resistance, strong mechanical strength, and outstanding appearance characteristics, making it widely used in various factories, equipment, and pipeline systems. It is an ideal choice for safe and efficient transportation of high-temperature steam.

Construction

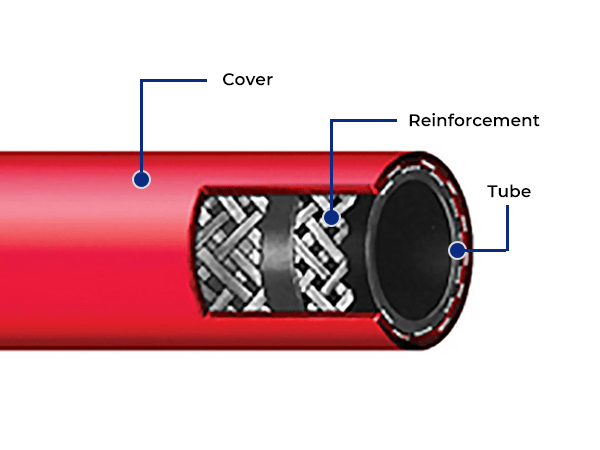

Display of the internal structure of steam rubber hose

Steam hose is made from excellent heat-resistant rubber. And the reinforcement is braided with copper facing wire.

  • Tube: Black, smooth, EPDM rubber especially compounded to withstand super heated steam.
  • Reinforcement: Piles of carbon steel wires.
  • Cover: Red, smooth (wrapped) EPDM rubber with excellent resistance to high temperature, weather, abrasion and aging. It is pin-pricked to prevent separation.
  • Temperature: -40 °C to +236 °C(-40 °F to +456 °F).
  • Color: Red, black, or custom-made
Table 1: Steam Rubber Hose Technical Specifications
PART NO. W/B I.D. O.D. Working Pressure Burst Pressure Minimum Bend Radius Length
DN inch mm MPa Psi MPa Psi mm meter
SRH1-0010 1W 10 3/8" 21.5 1.0 150 4 570 130 20/50
SRH1-0013 13 1/2" 24.5 1.0 150 4 570 180 20/50
SRH1-0016 16 5/8" 27.5 1.0 150 4 570 205 20/50
SRH1-0019 19 3/4" 30.5 1.0 150 4 570 240 20/50
SRH1-0022 22 7/8" 33.5 1.0 150 4 570 280 20/50
SRH1-0025 25 1" 37.0 1.0 150 4 570 300 20/50
SRH1-0032 32 1-1/4" 44.0 1.0 150 4 570 420 20/40
SRH1-0038 38 1-1/2" 50.5 1.0 150 4 570 500 20/40
SRH1-0045 45 1-3/4" 57.5 1.0 150 4 570 500 20/40
SRH1-0051 51 2" 63.5 1.0 150 4 570 630 20/40
SRH1-0064 64 2-1/2" 77.5 1.0 150 4 570 700 20/40
SRH2-0010 2W 10 3/8" 23.0 3.5 500 7 1000 130 20/50
SRH2-0013 13 1/2" 26.0 3.5 500 7 1000 180 20/50
SRH2-0016 16 5/8" 29.0 3.5 500 7 1000 205 20/50
SRH2-0019 19 3/4" 32.0 3.5 500 7 1000 240 20/50
SRH2-0022 22 7/8" 35.0 3.5 500 7 1000 280 20/50
SRH2-0025 25 1" 38.5 3.5 500 7 1000 300 20/50
SRH2-0032 32 1-1/4" 45.5 3.5 500 7 1000 420 20/40
SRH2-0038 38 1-1/2" 52.0 3.5 500 7 1000 500 20/40
SRH2-0045 45 1-3/4" 59.0 3.5 500 7 1000 500 20/40
SRH2-0051 51 2" 65.0 3.5 500 7 1000 630 20/40
SRH2-0064 64 2-1/2" 79.0 3.5 500 7 1000 700 20/40

Production Display

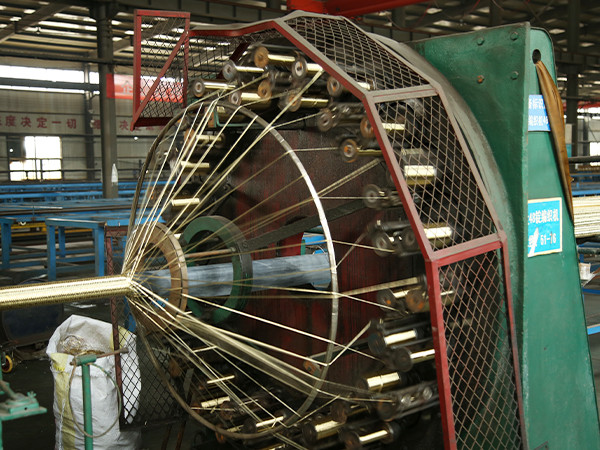

Braiding machine used for processing steam rubber hose

Braiding machine

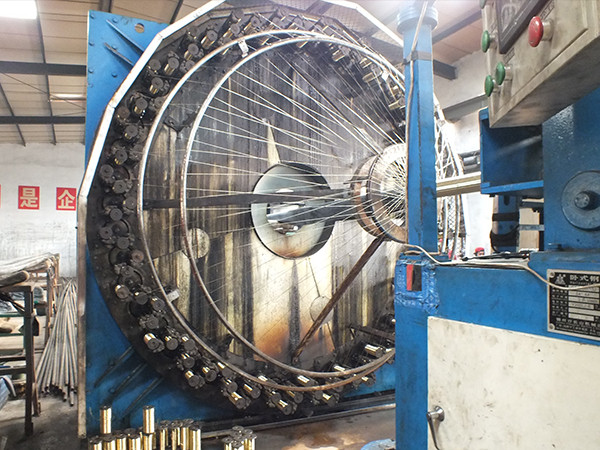

Large braiding machine for processing steam rubber hose

Large braiding machine

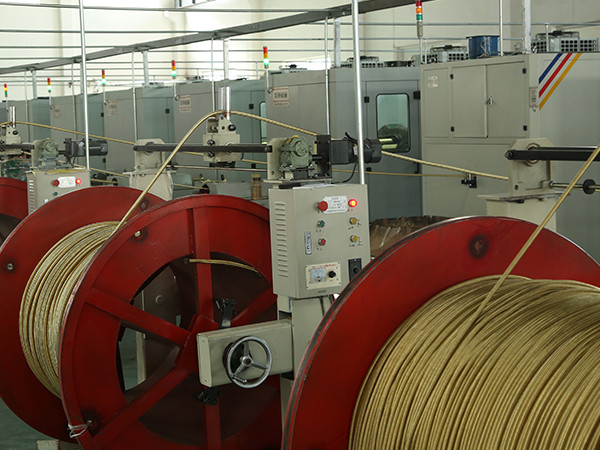

High-speed braiding equipment for processing steam rubber hose

High-speed braiding equipment

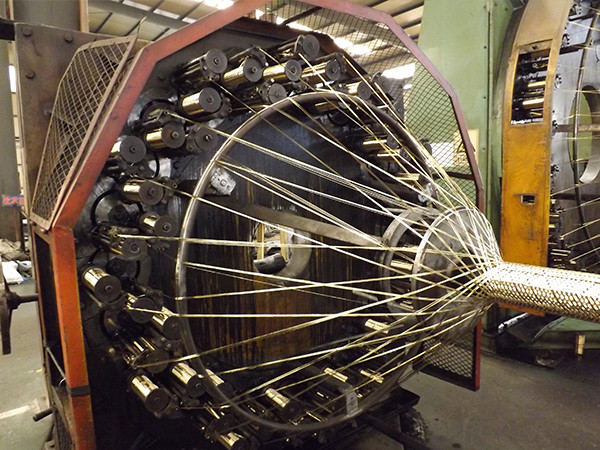

Reinforced yarn braiding machine in operation for processing steam rubber hose

Reinforced yarn braiding machine

Applications

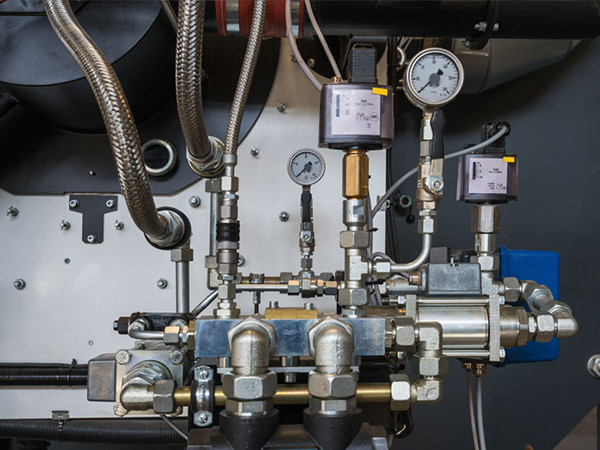

Steam rubber hose installed in pipeline system

Pipeline System

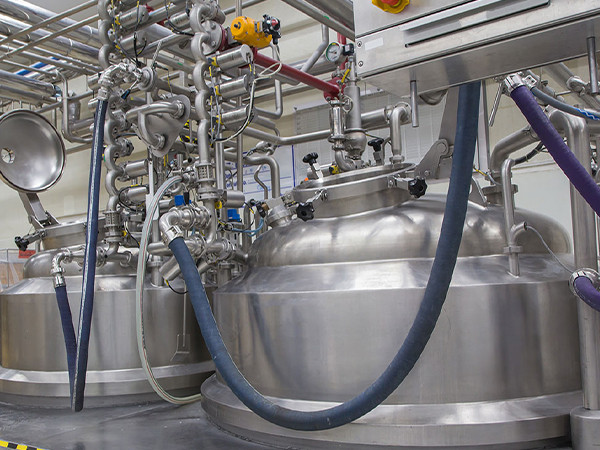

Rubber steam hose used for steam transportation in factories

Steam transportation in factories

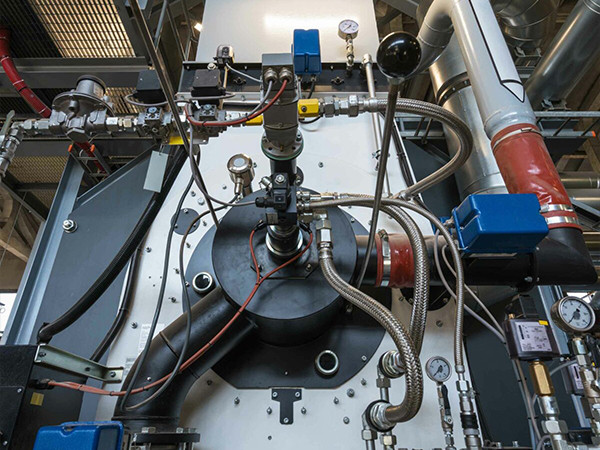

Steam rubber hose used for steam in equipment transportation

Steam in equipment transportation
