Nylon Resin Hose - Steel Wire & Fiber Reinforced Nylon Resin Hose

Nylon resin hose refers to a high-pressure hose formed by extruding nylon material as the inner core, wrapping or weaving high-strength steel wire or industrial fiber as the reinforcement layer, and then forming an outer cover layer made of nylon or polyurethane material. It has characteristics such as abrasion resistance, oil resistance, chemical resistance, and corrosion resistance. It is mainly classified into two types based on its structure: steel wire reinforced nylon resin hose and fiber reinforced nylon resin hose. In addition, custom thermoplastic polyurethane reinforced hoses, SAE 100R7 thermoplastic hydraulic hoses, and SAE 100R8 high-pressure thermoplastic hydraulic hoses can also be customized.

Steel Wire Reinforced Nylon Resin Hose

Steel wire reinforced nylon resin hose consists of inner tube, reinforcement layer, and outer cover. The inner tube is made of nylon material, the reinforcement layer is wrapped with high-strength steel wire, and the outer cover is made of nylon or polyurethane material. It has characteristics such as oil resistance, heat resistance, high pressure resistance, aging resistance, impact resistance, etc., and can be used as a special hose for high-pressure paint spraying and high-pressure cleaning agents.

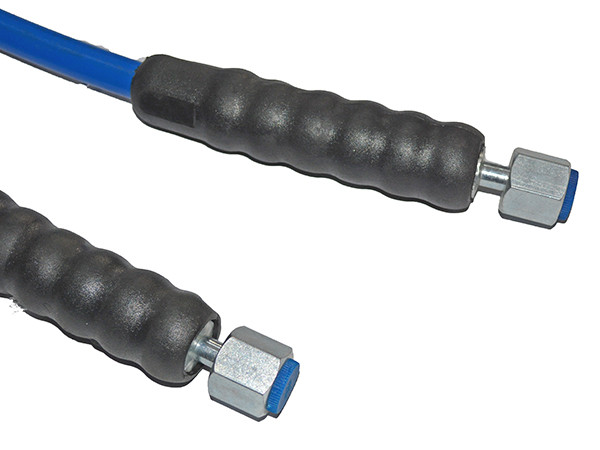

Both ends of a blue steel wire reinforced nylon resin hose

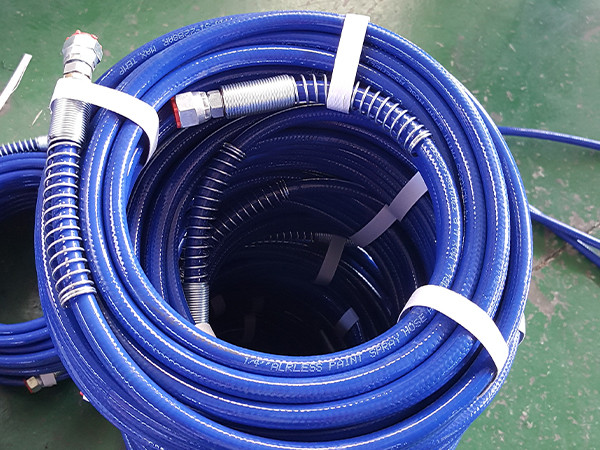

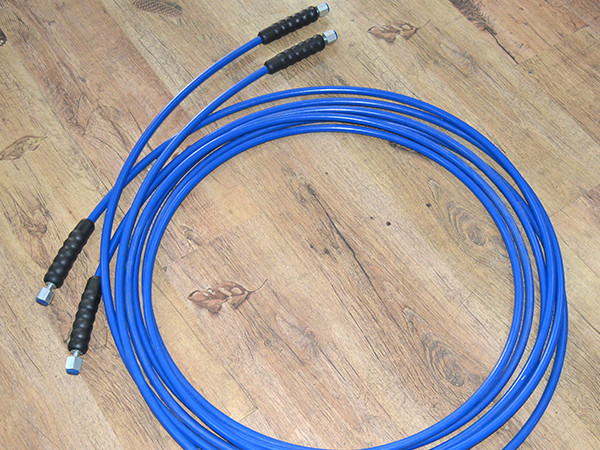

A coil of blue steel wire reinforced nylon resin hose placed on the ground
A coil of blue steel wire reinforced nylon resin hose placed on the ground

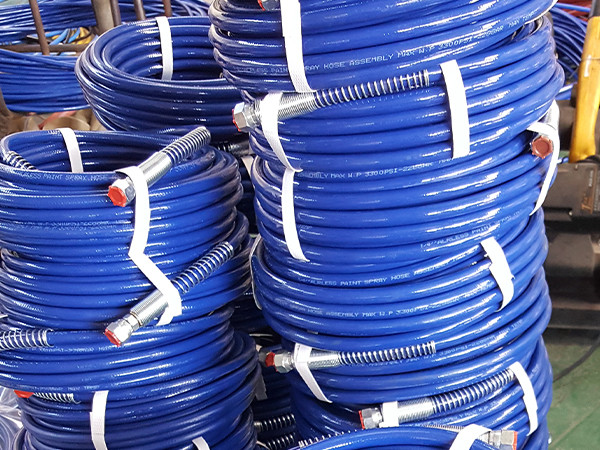

Several coils of blue steel wire reinforced nylon resin hose placed on the ground

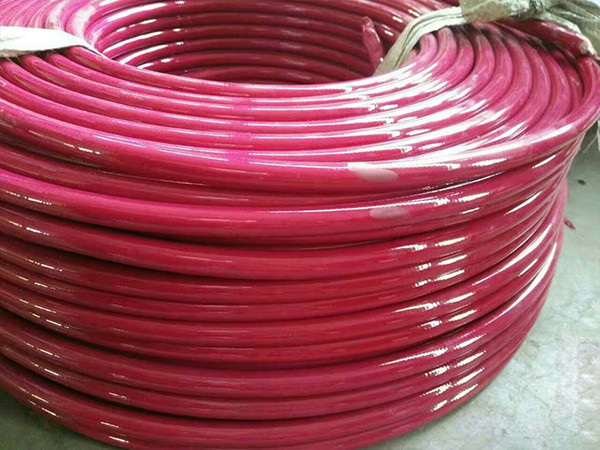

A coil of red steel wire reinforced nylon resin hose placed on the ground
A blue steel wire reinforced nylon resin hose placed on a flat surface

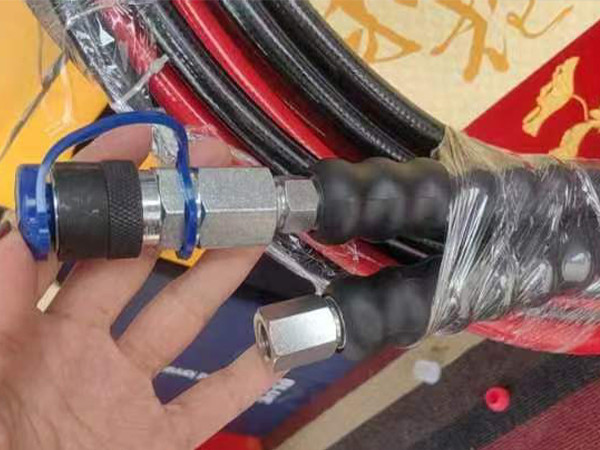

Double union ultra high pressure nylon resin hose with black fittings

Fiber Reinforced Nylon Resin Hose

The fiber reinforced nylon resin hose is composed of three parts: inner tube, reinforcement layer, and outer tube. The inner tube is made of nylon material, the reinforcement layer is woven from high-strength industrial fibers, and the outer cover is made of nylon or polyurethane material. It is widely used in many industries due to its advantages such as wear resistance, corrosion resistance, resistance to chemical liquids and oils, high temperature and high pressure resistance, good aging resistance, and long service life.

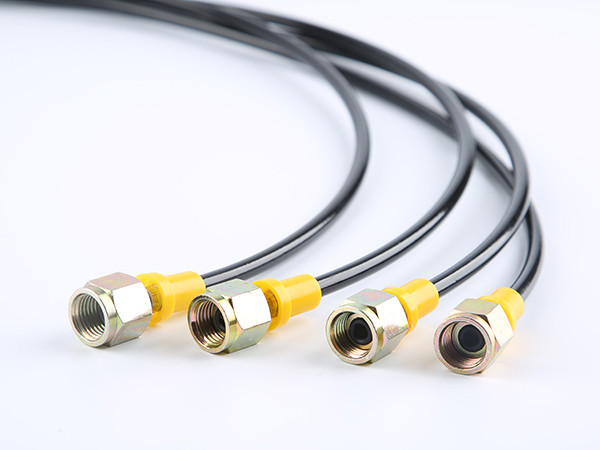

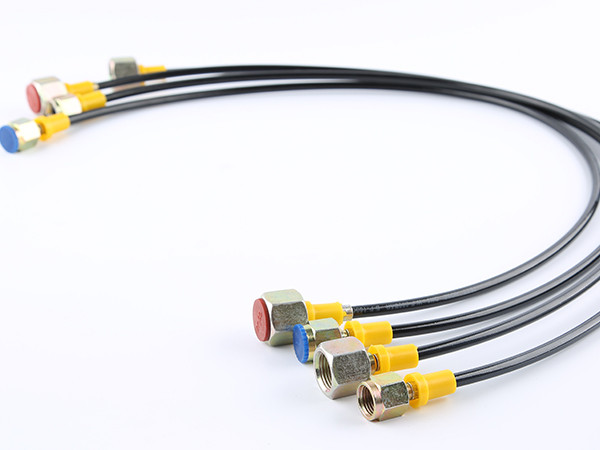

Four black fiber reinforced nylon resin hoses placed on a flat surface
Four black fiber reinforced nylon resin hoses placed on a flat surface

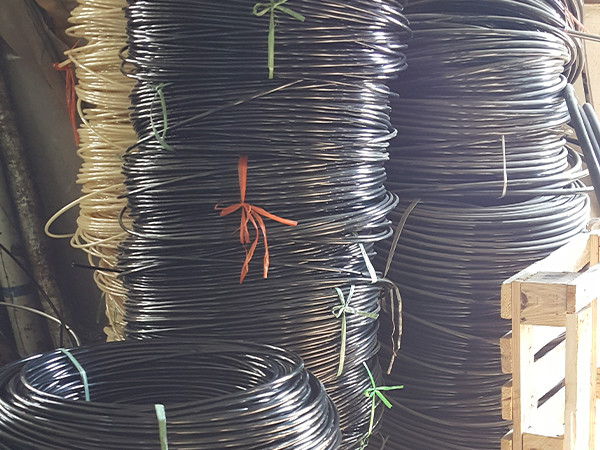

Several rolls of black fiber reinforced nylon resin hoses placed on the ground

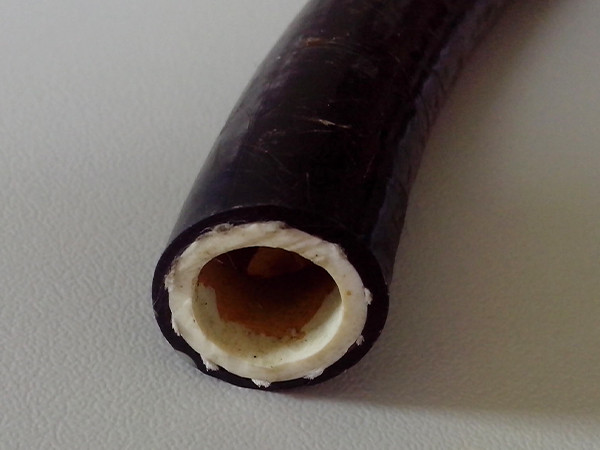

A black fiber reinforced nylon resin hose placed on a flat surface

Specifications

Table 1: Reinforced Nylon Elastomer Resin Hose Technical Specification
PART NO. ID Reinforcement OD WP.MPa BP.MPa BR.MM
GPU XPU GPU XPU GPU XPU GPU XPU
NERH-0004-01 4 8.6 8.3 40 22 152 80 85 55
NERH-0004-02 10.5 9.2 53 28 168 100
NERH-0006-01 6 11.5 10.5 35 20 105 45.2 100 70
NERH-0006-02 13.5 12 50 26 150 64
NERH-0006-03 14 13.5 55 32 165 80
NERH-0008-01 8 13 12.8 30 19 90 32.8 115 85
NERH-0008-02 14.5 14 45 24 135 49
NERH-0008-03 15.5 15.5 50 30 150 60
NERH-0010-01 10 16 15 25 18 75 28 125 95
NERH-0010-02 17.8 16.5 40 22 120 44
NERH-0010-03 18 18 45 26 135 52
NERH-0012-01 12 20 19.5 20 16 60 27.2 180 120
NERH-0012-02 22.5 21 30 20 90 40
NERH-0012-03 24.5 23 40 24 120 48
NERH-0016-01 16 23.5 23.5 18 12 54 20 205 150
NERH-0016-02 26 25.5 26 14.5 78 32
NERH-0016-03 28 27.5 30 17 90 40
NERH-0019-01 19 27.5 27 15 10 45 16 240 170
NERH-0019-02 29.5 29 24 13 72 30.4
NERH-0019-03 31.5 31 29 16 87 35.2
NERH-0022-01 22 30.5 30 13 8 39 15.2 260 200
NERH-0022-02 32.5 32 16 12 48 28.8
NERH-0022-03 34.5 34 20 14 60 36.8
NERH-0025-01 25 34 34 12 6 36 14.8 300 270
NERH-0025-02 36 36 15 9 45 27.6
NERH-0025-03 39 38.5 19 12 57 31.2
NERH-0032-01 32 43 43 11 4.5 33 10.4 350 310
NERH-0032-02 46 46 12 6 36 18
NERH-0032-03 49 48.5 15 7.5 45 21.2
Note: GPU, steel wire reinforced nylon resin hose; XPU, fiber reinforced nylon resin hose.

Applications

Nylon resin hoses are suitable for the transportation of air, water, chemicals, measuring instrument pipelines, irrigation control systems, textile factories, food factories, vehicles, fuel delivery systems, vacuum systems, air conditioning systems, vibration insulators, electrostatic insulators, and other fields. Among them:

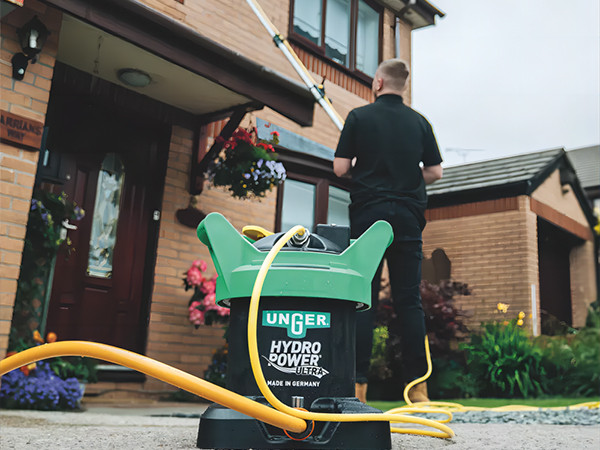

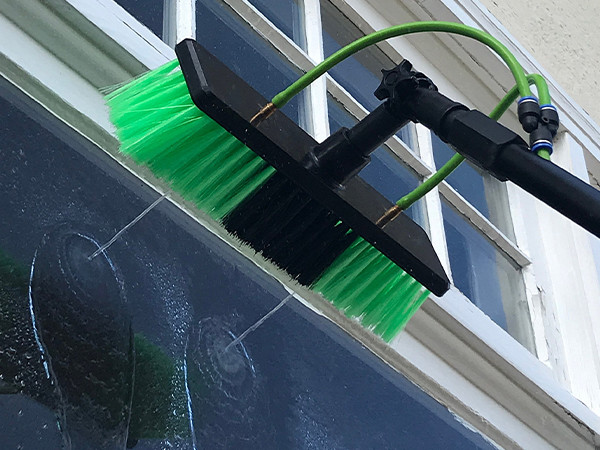

Steel Wire Reinforced Nylon Resin Hose Transporting water to clean glass with a broom

Steel wire reinforced nylon resin hose used for water transportation and cleaning

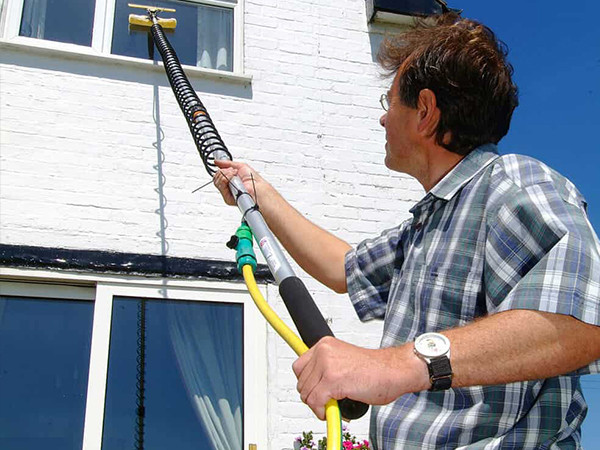

Steel wire reinforced nylon resin hose Transporting water cleaning glass

Steel wire reinforced nylon resin hose used for water transportation and cleaning

Steel wire reinforced nylon resin hose Transporting water cleaning glass

Steel wire reinforced nylon resin hose used for water transportation and cleaning

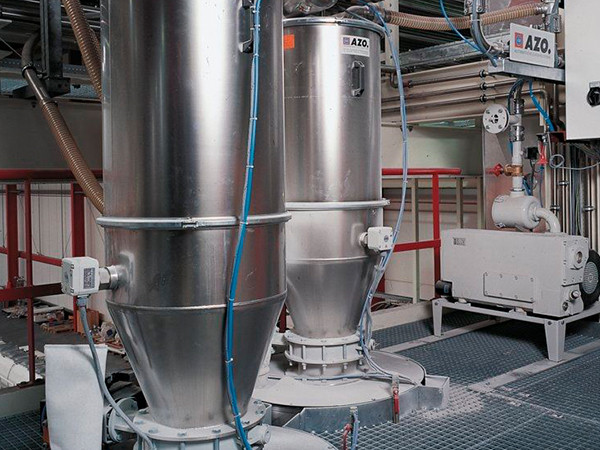

Steel wire reinforced nylon resin hose Used for transferring chemicals

Steel wire reinforced nylon resin hose used for industrial equipment

Steel Wire Reinforced Nylon Resin Hose used for fluid conveyance

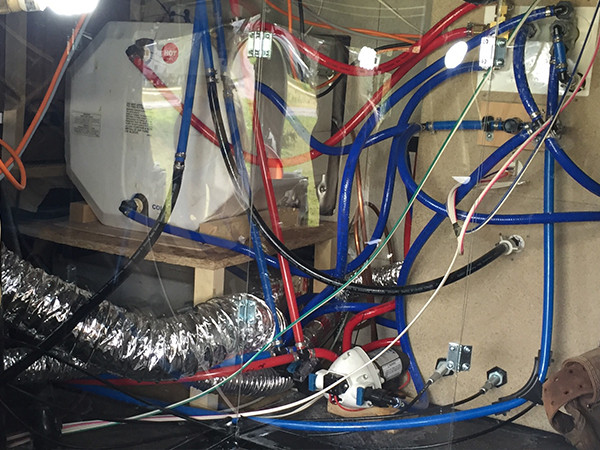

Steel wire reinforced nylon resin hose used for RV water supply systems

Nylon resin hose used for automotive systems

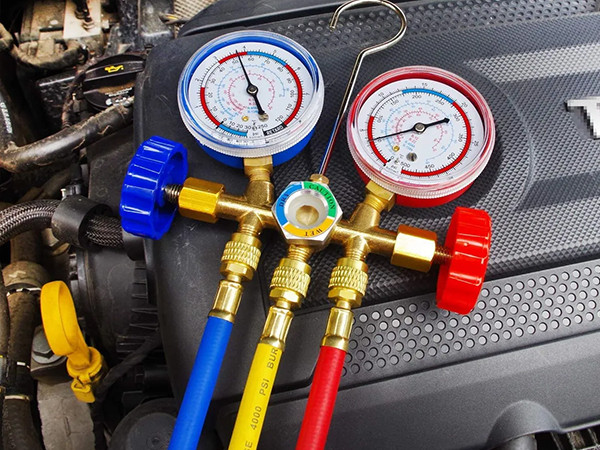

Fiber reinforced nylon resin hose used for automotive refrigeration

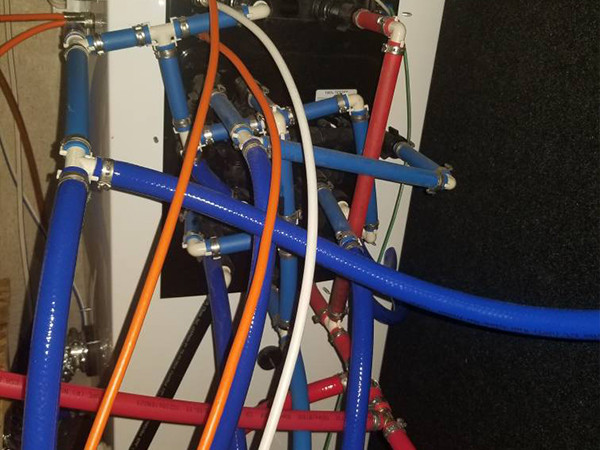

Fiber reinforced nylon resin hose used for control systems

Fiber-reinforced nylon resin hose used for control panel piping systems
