PTFE Flexible Chemicals Composite Hose

Flexible chemical composite hose is specifically designed for transporting various chemicals, featuring corrosion resistance, flexibility, and pressure resistance. It is constructed from multiple layers of materials, including a polymer inner layer and a reinforcement layer, and is capable of resisting corrosion from various chemical substances. These hoses have excellent flexibility, making them easy to operate in confined spaces. Besides, they are lighter and easier to handle and install compared to traditional metal pipes. During the suction or discharge process, the inner wire supports the hose wall, preventing collapse during suction. In addition, the threaded design of the outer layer provides excellent pressure resistance and protects the hose from external abrasion.

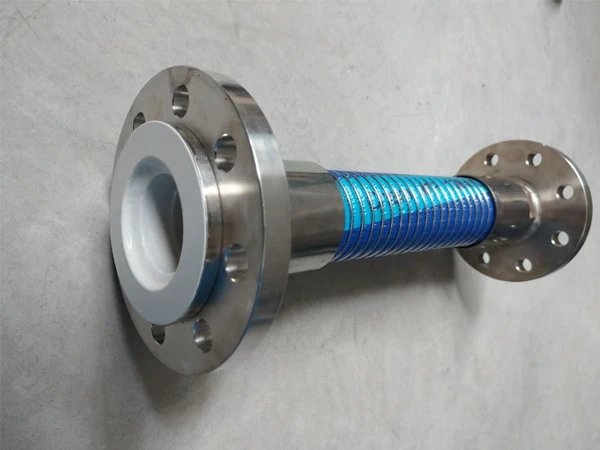

A flexible chemicals composite hose with a connector

Flexible chemicals composite hose

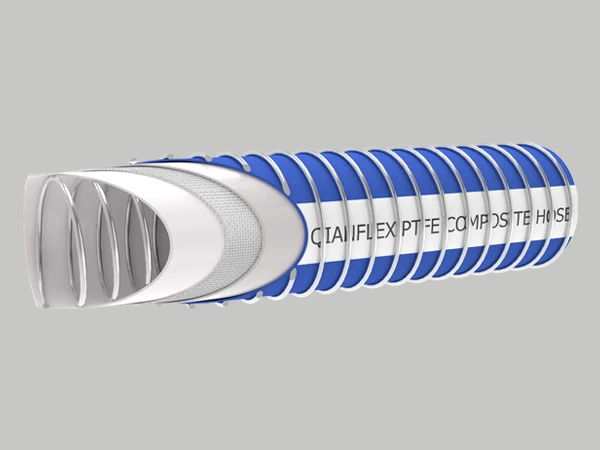

A cross-section display of a flexible chemicals composite hose

Flexible chemicals composite hose structure

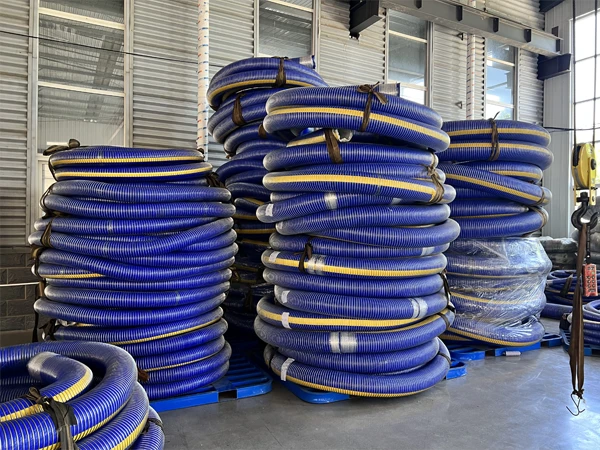

Blue flexible chemicals composite hose finished products stacked in the warehouse

Finished flexible chemicals composite hose

Specification

Table 1: Flexible PTFE Composite Hose Specification
Item l.D. (inch) B.R. (inch) w.p. (psi) weight (Ib/ft.) Length (m)
1 1" 5-1/2" 370 0.7 30.0/Customization
2 1-1/2" 6" 370 1.0 30.0/Customization
3 2" 7" 370 1.7 30.0/Customization
4 2-1/2" 8" 370 2.2 30.0/Customization
5 3" 10" 370 3.0 30.0/Customization
6 4" 20" 345 5.0 30.0/Customization
7 6" 26" 345 9.3 19.5/Customization
8 8" 30" 345 12.5 19.5/Customization
9 10" 36" 225 15.1 19.5/Customization
10 12" 40" 225 18.7 19.5/Customization
