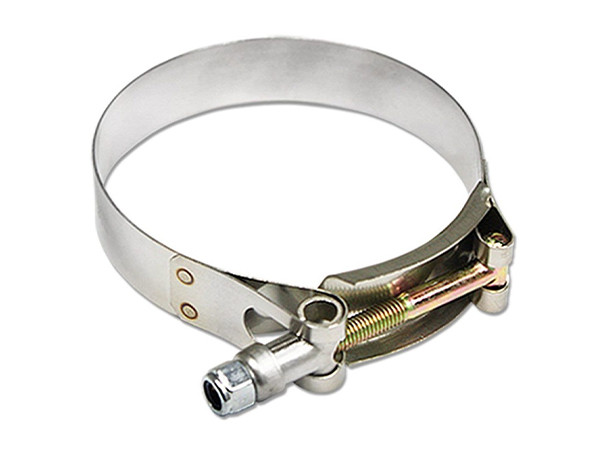

T-Bolt hose clamp
T-bolt hose clamp is an essential auxiliary of silicone hoses installation. It is used as lean-proof connection to protect silicone hoses. It is widely applied in industrial, commercial, marine and military applications. Our clamps are made of 100 % stainless steel which gives good corrosion resistance, good durability and high tensile strength. Stainless steel T-bolt clamp is ideal for medium and heavy-duty applications.
Part No. | Inside Diameter | Effective Range | Width | Max. Torque | |
---|---|---|---|---|---|
mm | inch | mm | mm | in. lbs | |
TB25 | 25 | 1" | 32–37 | 19 | 75 |
TB28 | 28 | 1-1/8" | 35–40 | 19 | 75 |
TB30 | 30 | 1-3/16" | 38–43 | 19 | 75 |
TB35 | 35 | 1-3/8" | 41–46 | 19 | 75 |
TB38 | 38 | 1-1/2" | 44–51 | 19 | 75 |
TB41 | 41 | 1-5/8" | 48–56 | 19 | 75 |
TB45 | 45 | 1-3/4" | 51–59 | 19 | 75 |
TB48 | 48 | 1-7/8" | 54–62 | 19 | 75 |
TB51 | 51 | 2" | 57–65 | 19 | 75 |
TB54 | 54 | 2-1/8" | 60–68 | 19 | 75 |
TB57 | 57 | 2-1/4" | 63–71 | 19 | 75 |
TB60 | 60 | 2-3/8" | 67–75 | 19 | 75 |
TB65 | 65 | 2-9/16" | 70–78 | 19 | 75 |
TB68 | 68 | 2-11/16" | 73–81 | 19 | 75 |
TB70 | 70 | 2-3/4" | 76–84 | 19 | 75 |
TB76 | 76 | 3" | 83–91 | 19 | 75 |
TB80 | 80 | 3-1/8" | 86–94 | 19 | 75 |
TB83 | 86 | 3-1/4" | 89–97 | 19 | 75 |
TB89 | 89 | 3-1/2" | 95–103 | 19 | 75 |
TB95 | 95 | 3-3/4" | 102–110 | 19 | 75 |
T-Bolt hose clamp
