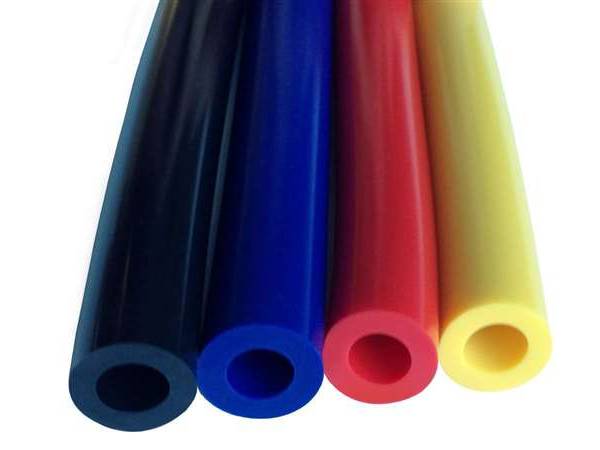

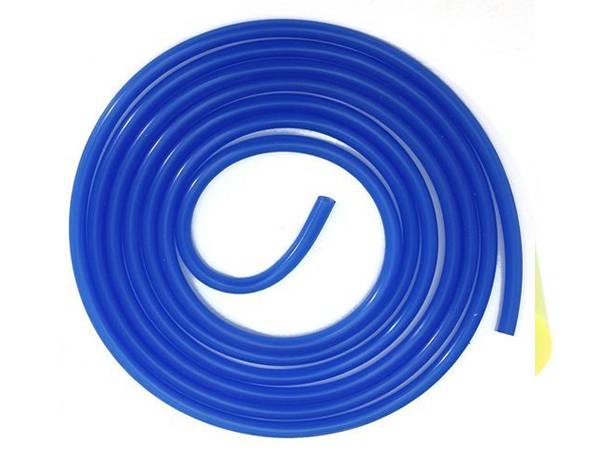

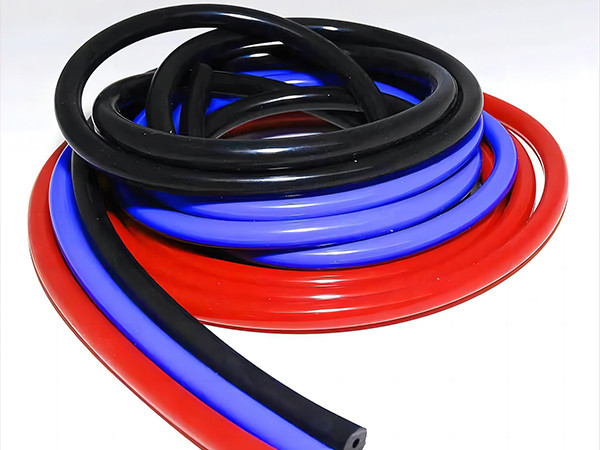

Silicone vacuum hose is extruded from silicone rubber with unreinforced construction. Silicone rubber has many good properties, including low chemical reactivity, low thermal conductivity, high thermal stability, and excellent resistance to oxygen, ozone, and UV. All these properties contribute to good performance in extreme temperatures.
Compared with PVC hose, silicone vacuum hose will not soften at extreme temperatures from -50 °C to +170 °C. Moreover, silicone hose is more durable than PVC hose. When crushed, it will spring back to its original shape.

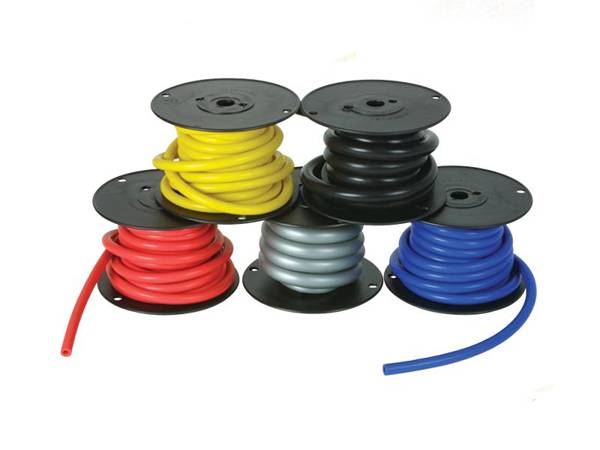

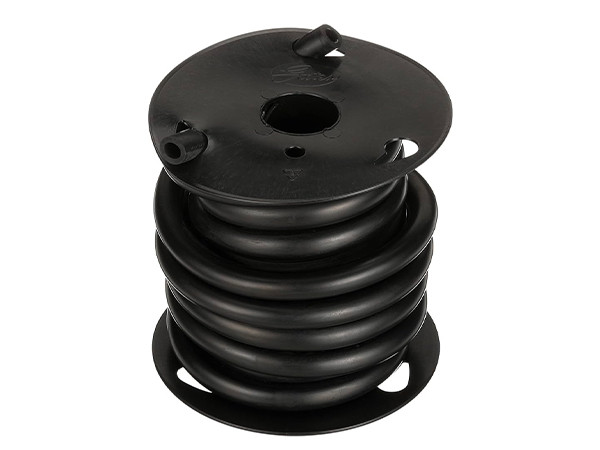

P/N | I.D. | Thickness | Length/Roll |
---|---|---|---|
mm | mm | m | |
SVH-2-3 | 2 | 3 | 50 |
SVH-3-2 | 3 | 2 | 76 |
SVH-3-3 | 3 | 3 | 50 |
SVH-4-2 | 4 | 2 | 76 |
SVH-4-3 | 4 | 3 | 50 |
SVH-5-2.5 | 5 | 2.5 | 76 |
SVH-5-3 | 5 | 3 | 50 |
SVH-6-3 | 6 | 3 | 50 |
SVH-8-3 | 8 | 3 | 50 |
SVH-10-3 | 10 | 3 | 50 |
SVH-13-3 | 13 | 3 | 50 |
SVH-16-4 | 16 | 4 | 50 |
SVH-19-4 | 19 | 4 | 50 |
SVH-22-4 | 22 | 4 | 50 |
SVH-25-4 | 25 | 4 | 50 |
Silicone vacuum hose can be used in vacuum propelling, windshield washers, coolant overflow, emission control, dump valves, breathers, vacuum pump, catch pot, degassing chamber or other applications.
