Closed-Cell Silicone Sponge Foam Tubes – Reliable Sealing & Insulation

Closed-cell silicone sponge foam tubes are a type of closed-cell elastomeric material. It is expanded when it is heat-cured to generate many tiny bubbles that are not connected through the passage of the material. The tubes exhibit good high-temperature resistance, low-temperature resistance, oxidation resistance, and corrosion resistance, making them suitable for various applications like sealing, sound insulation, and insulation. With FDA certification, they are non-toxic and food-safe. Their high tear strength, wide operating temperature range, excellent flexibility, compression resilience, and resistance to UV, ozone, and other chemicals make them a versatile, durable, and reliable solution for sealing and insulation.

Features

Table 1: Closed-Cell Silicone Sponge Foam Tubes Technical Specification
Item Data Item Data
Thickness 0.1 mm – 5 mm Diameter 5 mm – 150 mm
Length Endless Specific Gravity 0.9 g/cm3 – 1.3 g/cm3
Shape T/D/P or design Material Solid silicone, sponge silicone
Function Dust /water proof, noise / shock reduction Resistant Oil, chemical, heat
Color Pantone card and transparent Hardness 20 – 90 Shore A
Appearance Smooth/wave/braided Temperature -60°C to 350°C
Tear Strength Up to 25 Mpa Elongation 300% – 650%
Deformation Rate ≤ 9% Anti-Flammable FRAS approved
Acid and Alkali Resistance Available Insert Layer Fabric or canvas
Stick Layer 3M or brush glue Food Grade FDA approved
Medicine Passed halogen test Water Absorption 20% for silicone, 80% for sponge
Aging Teriod 5 years under right environment Chemical Safe ROHS and SVHC certificate
Table 2: Closed-Cell Silicone Sponge Foam Tubes Standard Size
Thickness ID/OD Color Hardness
T: Custom ID: Custom Transparent 20 Shore A
T: 0.5 mm – 15 mm ID: 5–150 mm / OD: 6–180 mm Translucent 25 Shore A
T: 1 mm ID: 2 mm / OD: 4 mm Red 30 Shore A
T: 2 mm ID: 6 mm / OD: 8 mm Black 40 Shore A
T: 3 mm ID: 8 mm / OD: 14 mm White 50 Shore A
T: 4 mm ID: 10 mm / OD: 18 mm Orange 60 Shore A
T: 5 mm ID: 20 mm / OD: 30 mm Blue 65 Shore A
T: 8 mm ID: 50 mm / OD: 66 mm Green 70 Shore A
T: 10 mm ID: 100 mm / OD: 120 mm Clear 80 Shore A
T: 15 mm ID: 150 mm / OD: 180 mm Grey 90 Shore A

Application

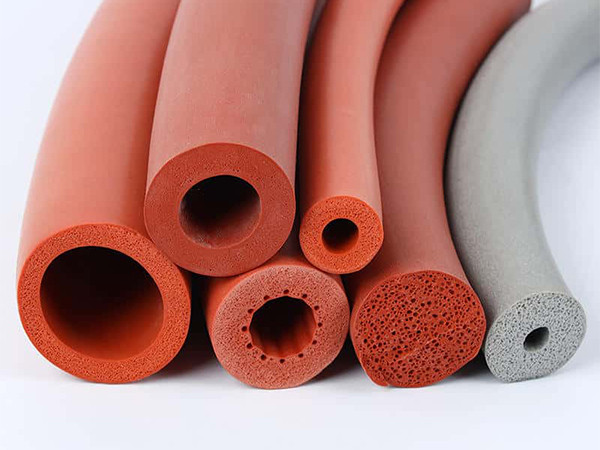

5 red and one gray silicone sponge foam tubes

Closed-cell silicone sponge foam tubes

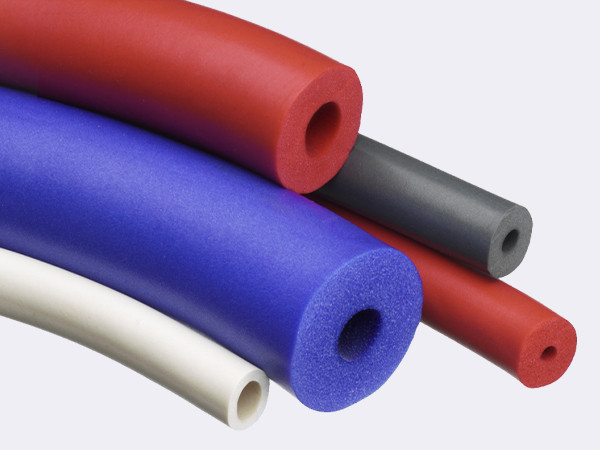

Silicone sponge foam tubes in different colors

Closed-cell silicone sponge foam tubes
