60° Elbow Silicone Hose – Polyester Reinforced

60° elbow silicone hoses , reinforced by polyester about 3 to 4 plies, are designed to meet high performance requirements of various automobile and industry standards. This silicone hose is suitable for coolant, water, steam, air and a small amount of oil mist.

Nomex reinforced and Fluoro lined are especially provided for special orders.

Features

Table 1: 60° Elbow Silicone Hose – Polyester Reinforced
Part No. Inner diameter Leg length Plies Wall
inch mm inch mm mm
E60-19 3/4" 19 4" × 4" 102 × 102 3 4
E60-25 1" 25 4" × 4" 102 × 102 3 4
E60-32 1-1/4" 32 4" × 4" 102 × 102 3 4
E60-35 1-3/8" 35 4" × 4" 102 × 102 3 4
E60-38 1-1/2" 38 4" × 4" 102 × 102 3 4
E60-51 2" 51 4" × 4" 102 × 102 4 5
E60-63 2-1/2" 63 4" × 4" 102 × 102 4 5
E60-76 3" 76 4" × 4" 102 × 102 4 5
Four purple 60 degree elbow silicone hose, arranged from thick to thin on a white background.

Purple 60° silicone elbow hose

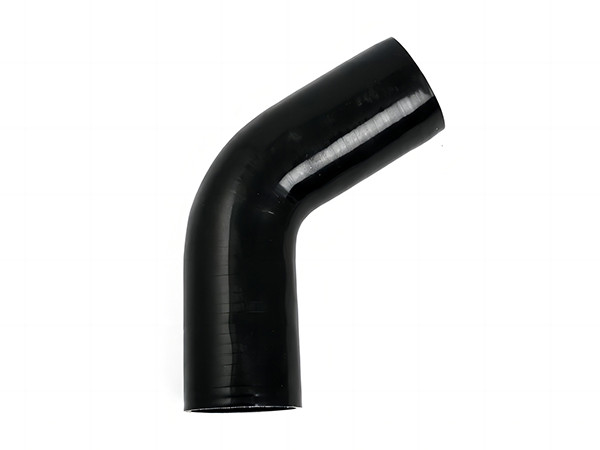

A black 60 degree elbow silicone hose on a white background.

Black 60° silicone elbow hose
