15 Degree Elbow Silicone Hose – Polyester Reinforced

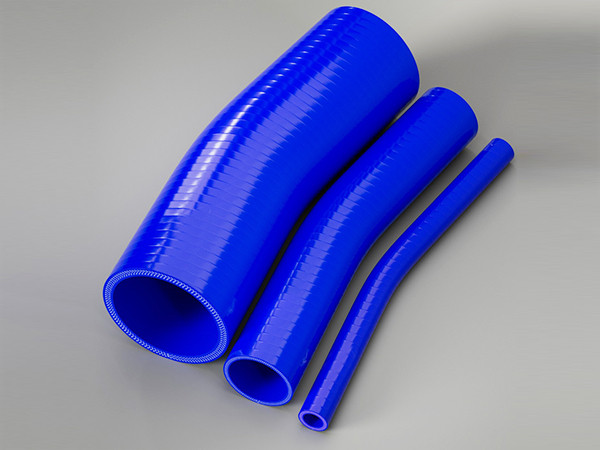

3 blue 15° elbow silicone hoses in different sizes

15° elbow silicone hose, reinforced by the knitted polyester fabric of 3 to 4 plies, is widely used in marine, automotive, and industrial applications for carrying coolant, glycol, water, steam, or a small amount of oil mist for spraying. However, it is not compatible with fuel and oil. In addition, Nomex reinforced and Fluoro lined silicone hoses are available for special orders.

Technical Specification

Table 1: 15° Elbow Silicone Hose Specification
Hose code Inner Diameter Leg Length Plies Wall
inch mm inch mm mm
E15-19 3/4" 19 4 × 4 102 × 102 3 4
E15-25 1" 25 4 × 4 102 × 102 3 4
E15-32 1-1/4" 32 4 × 4 102 × 102 3 4
E15-35 1-3/8" 35 4 × 4 102 × 102 3 4
E15-38 1-1/2" 38 4 × 4 102 × 102 3 4
E15-51 2" 51 4 × 4 102 × 102 4 5
E15-63 2-1/2" 63 4 × 4 102 × 102 4 5
E15-76 3" 76 4 × 4 102 × 102 4 5

Application

Available for conveying air, water, coolant in the engines of marine, automotive, etc.

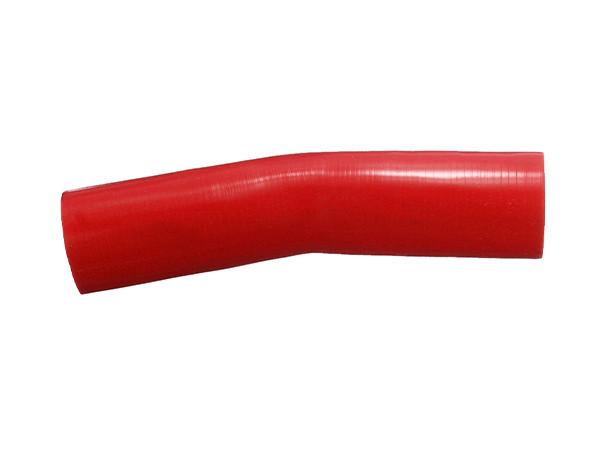

A red 15° elbow silicone hose on the white background

Red 15° elbow silicone hose

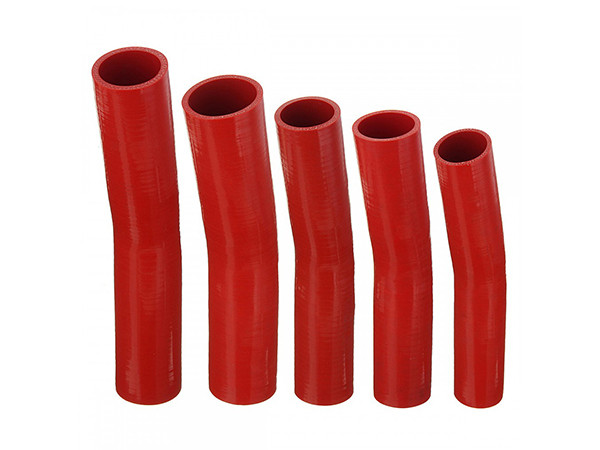

5 red 15° elbow silicone hoses in different lengths on the white background

Red 15° elbow silicone hoses in different lengths

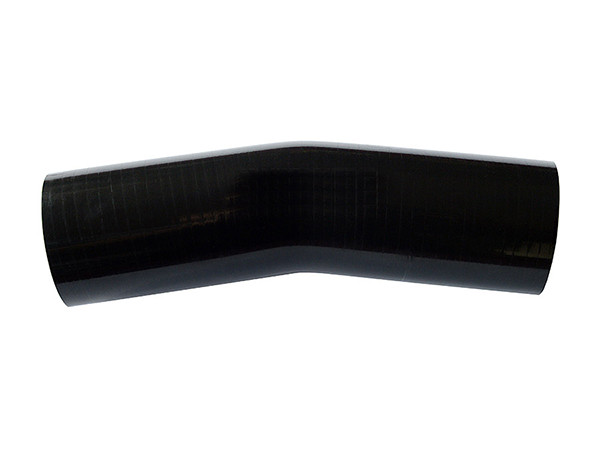

A black 15° elbow silicone hose on the white background

Black 15° elbow silicone hose

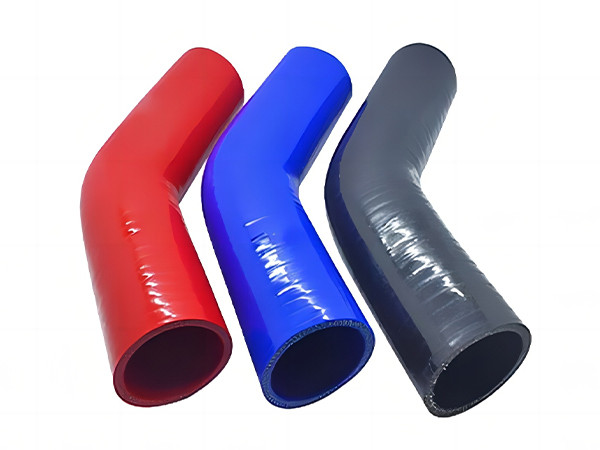

Three 15° elbow silicone hoses in different colors on the white background

Red, blue and gray 15° elbow silicone hoses
