120° Silicone Elbow – Polyester, Nomex & Fluoro

120° elbow silicone hose reinforced by polyester fiber is frequently used in vehicles and other industries. This configuration gives the hose greater flexibility and strength against the environment. It is ideal for carrying water, air, coolant, steam, etc.

Features

Table 1: 120° Elbow Silicone Hose Specification
Part No. Internal Diameter Leg Length Plies Wall
mm inch mm mm
E120-19 19 3/4" 102 × 102 3 4
E120-25 25 1" 102 × 102 3 4
E120-32 32 1-1/4" 102 × 102 3 4
E120-35 35 1-3/8" 102 × 102 3 4
E120-38 38 1-1/2" 102 × 102 3 4
E120-51 51 2" 102 × 102 4 5
E120-63 63 2-1/2" 102 × 102 4 5
E120-76 76 3" 102 × 102 4 5

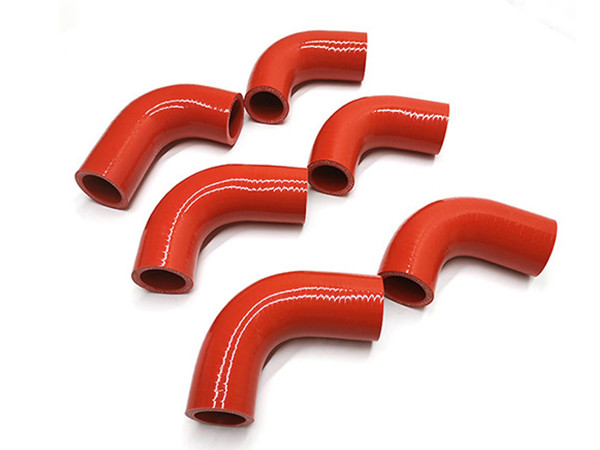

6 red 120° silicone elbow on a white background

Red 120° silicone elbow

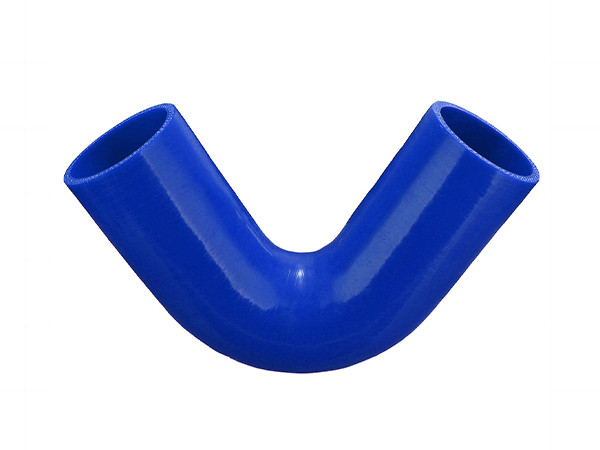

A blue 120° silicone elbow on a white background

Blue 120° silicone elbow
