90° Silicone Elbow Hose – Polyester, Nomex & Fluoro
We offer three different types of 90° silicone elbow hoses for you, including polyester reinforced, Nomex reinforced, and Fluoro lined. Whether your needs are in the automotive engine compartment, cooling system, or turbocharging system, our silicone hose series provides excellent performance and reliability for you.

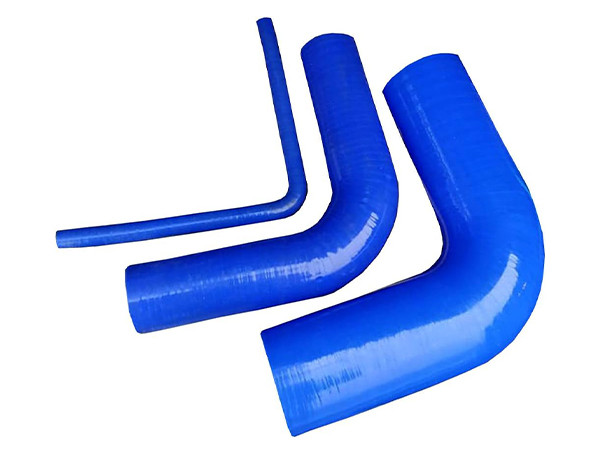

Blue 90° silicone elbow hose

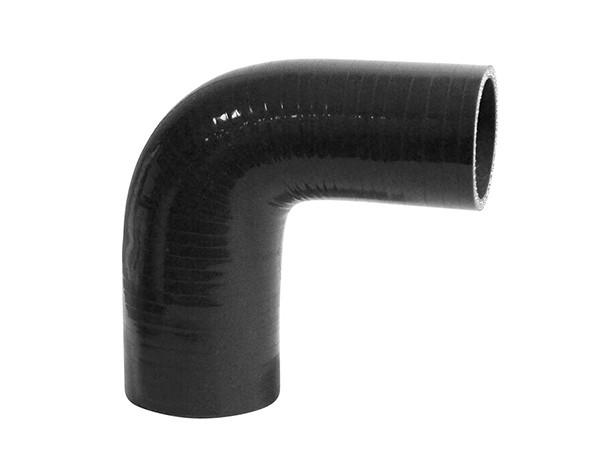

Black 90° silicone elbow hose

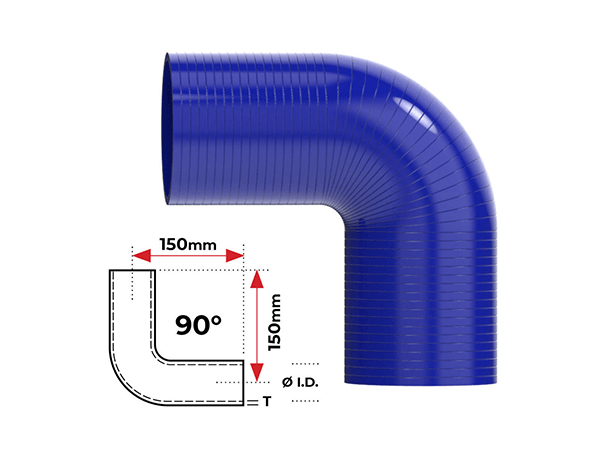

Purple 90° silicone elbow hose
90° Elbow Silicone Hose – Polyester Reinforced
90° selbow ilicone hose, or right-angle hose is designed with 3 to 5 plies of knitted polyester fabrics for common uses. Polyester reinforced configuration gives the silicone hose greater strength and flexibility. It is widely used in most engines for carrying water, air, coolant, steam, etc.
Remark: Polyester reinforced silicone hoses are not available for fuel & oils.
Features
- Ideal operating temperature: -55 °C to +170 °C.
- Color: black, red and blue.
- UV and ozone resistant.
- Silicone liner for isolating media.
Table 1: 90° Elbow Silicone Hose – Polyester Reinforced
| Part No. |
Internal Diameter |
Leg length |
Plies |
Wall |
| mm |
mm |
mm |
| E90-065 |
6.5 |
63 |
3 |
3.5 |
| E90-08 |
8 |
63 |
3 |
3.5 |
| E90-095 |
9.5 |
63 |
3 |
3.5 |
| E90-11 |
11 |
63 |
3 |
3.5 |
| E90-13 |
13 |
100 |
3 |
3.5 |
| E90-16 |
16 |
100 |
3 |
3.5 |
| E90-19 |
19 |
100 |
3 |
3.5 |
| E90-22 |
22 |
100 |
3 |
3.5 |
| E90-25 |
25 |
100 |
3 |
3.5 |
| E90-28 |
28 |
100 |
3 |
3.5 |
| E90-30 |
30 |
100 |
3 |
3.5 |
| E90-32 |
32 |
100 |
3 |
3.5 |
| E90-35 |
35 |
100 |
3 |
3.5 |
| E90-38 |
38 |
100 |
3 |
3.5 |
| E90-41 |
41 |
100 |
3 |
3.5 |
| E90-45 |
45 |
100 |
3 |
3.5 |
| E90-48 |
48 |
100 |
3 |
3.5 |
| E90-51 |
51 |
100 |
4 |
5 |
| E90-54 |
54 |
100 |
4 |
5 |
| E90-57 |
57 |
100 |
4 |
5 |
| E90-60 |
60 |
125 |
4 |
5 |
| E90-63 |
63 |
125 |
4 |
5 |
| E90-70 |
70 |
125 |
4 |
5 |
| E90-76 |
76 |
125 |
4 |
5 |
| E90-80 |
80 |
125 |
4 |
5 |
| E90-83 |
83 |
125 |
4 |
5 |
| E90-89 |
89 |
125 |
5 |
6 |
| E90-102 |
102 |
125 |
5 |
6 |
90° Elbow Silicone Hose – Nomex Reinforced
Nomex has excellent thermal, chemical and radiation resistance and it is widely used in applications where high temperature and high pressure are needed, including radiator hoses, turbocharger hoses, etc.
Features
- Suitable working temperature: –50 °C to +250 °C.
- Color: black.
- Nomex reinforced 3–5 plies.
- UV and ozone resistant.
- Silicone hose creates a barrier to isolate media.
Table 2: 90° Elbow Silicone Hose – Nomex Reinforced
| Part No. |
Internal Diameter |
Leg Length |
Plies |
Wall |
| mm |
inch |
mm |
mm |
| E90-13 HT |
13 |
1/2" |
102 × 102 |
3 |
4 |
| E90-16 HT |
16 |
5/8" |
102 × 102 |
3 |
4 |
| E90-19 HT |
19 |
3/4" |
102 × 102 |
3 |
4 |
| E90-25 HT |
25 |
1" |
102 × 102 |
3 |
4 |
| E90-32 HT |
32 |
1-1/4" |
102 × 102 |
3 |
4 |
| E90-35 HT |
35 |
1-3/8" |
102 × 102 |
3 |
4 |
| E90-38 HT |
38 |
1-1/2" |
102 × 102 |
3 |
4 |
| E90-51 HT |
51 |
2" |
102 × 102 |
4 |
5 |
| E90-60 HT |
60 |
2-3/8" |
102 × 102 |
4 |
5 |
| E90-63 HT |
63 |
2-1/2" |
102 × 102 |
4 |
5 |
| E90-70 HT |
70 |
2-3/4" |
102 × 102 |
4 |
5 |
| E90-76 HT |
76 |
3" |
102 × 102 |
4 |
5 |
| E90-102 HT |
102 |
4" |
125 × 125 |
5 |
6 |
Notes: Nomex reinforced silicone hoses are not suitable for oils & fuels.
90° Elbow Silicone Hose – Fluoro Lined
In contrast to polyester fiber and Nomex reinforced silicone hoses, Fluoro lined silicone hose has some unique properties. On one hand, it is not permeable to hydrocarbons and it is often used in vehicle applications to prevent oil seepage through the hose wall. On the other hand, it is suitable for carrying oils and fuel.
Features
- Working temperature: -55 °C to 250 °C.
- Color: black, red and blue.
- Fluoro lined for contacting with oils.
- Polyester fiber reinforced 3 to 4 plies.
- Especially used in turbocharger and intercooler hoses.
- Low permeation.
Table 3: 90° Elbow Silicone Hose – Fluoro lined
| Part No. |
Internal Diameter |
Leg Length |
Plies |
Wall |
| mm |
inch |
mm |
mm |
| E90-8 FL |
8 |
5/16" |
102 × 102 |
3 |
4 |
| E90-10 FL |
10 |
3/8" |
102 × 102 |
3 |
4 |
| E90-13 FL |
13 |
1/2" |
102 × 102 |
3 |
4 |
| E90-16 FL |
16 |
5/8" |
102 × 102 |
3 |
4 |
| E90-19 FL |
19 |
3/4" |
102 × 102 |
3 |
4 |
| E90-22 FL |
22 |
7/8" |
102 × 102 |
3 |
4 |
| E90-25 FL |
25 |
1" |
102 × 102 |
3 |
4 |
| E90-28 FL |
28 |
1-1/8" |
102 × 102 |
3 |
4 |
| E90-32 FL |
32 |
1-1/4" |
102 × 102 |
3 |
4 |
| E90-35 FL |
35 |
1-3/8" |
102 × 102 |
3 |
4 |
| E90-38 FL |
38 |
1-1/2" |
102 × 102 |
3 |
4 |
| E90-44 FL |
44 |
1-3/4" |
102 × 102 |
3 |
4 |
| E90-51 FL |
51 |
2" |
102 × 102 |
4 |
5 |
Remark: Fluoro lined silicone hoses are available for contacting with oils or oil mists.
Applications:
- It can join your intake pipe to the throttle body assembly, air metering assembly, intercooler, or turbo inlet/outlet.
- Custom compressor, intercooler or inlet piping for turbo/supercharged car
- Custom cold air intake for no turbo car
- Replacement of all factory rubber parts
- These silicone parts can be used in trucks, recreational vehicles, boats, or anything else with an engine.
